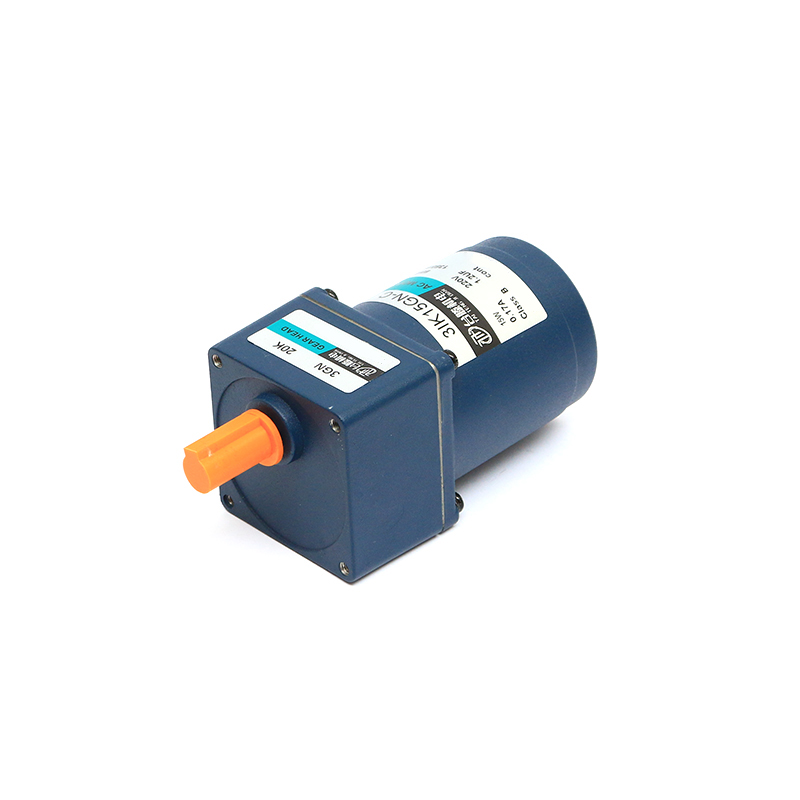

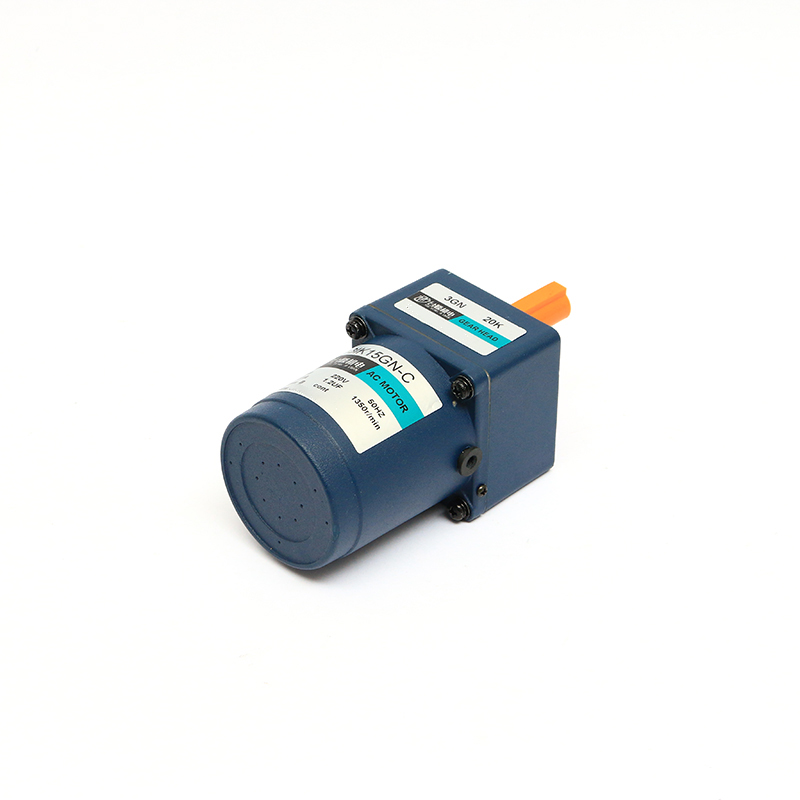

3IK系列
|
电机型号 Motor Model |
输出功率 Outout Power |
电压 Voltage |
频率 Frequenc |
电流 Current |
额定转速 Rated Speed |
额定转矩 Rated Torque |
启动转矩 Starting Torque |
运行电容 Capacitor |
|
|
齿轮轴型 Pinion Shaft |
圆轴型 Round Shsft |
W | V | Hz | A | r/min | MN.M | MN.M | UF/AC |
| 3IK15GN-C | 3IK15A-C | 15 | 1ph220 | 50 | 0.17 | 1250 | 125 | 84 | 1.2/450 |
| 60 | 0.17 | 1450 | 92 | 85 | |||||
| 3IK15GN-A | 3IK15A-A | 15 | 1ph110 | 50 | 0.34 | 1250 | 127 | 109 | 5.0/250 |
| 6o | 0.35 | 1450 | 94 | 120 | |||||
减速箱减速比/性能对照表 Gear Reductio/Performance Comparison
|
减速比 Gear Ratio |
3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz |
转速 Speedr/min |
450 | 375 | 270 | 225 | 180 | 150 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 33.7 | 27 | 22.5 | 18 | 15 | 13.5 | 11 | 9 | 7.5 | 6.75 |
|
转矩 Torque N.M |
1.05 | 0.36 | 0.5 | 0.61 | 0.76 | 0.91 | 1.01 | 1.26 | 1.5 | 1.64 | 1.82 | 2.27 | 2.73 | 3.27 | 3.63 | 4.54 | 4.9 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 60Hz |
转速 Speedr/min |
516 | 430 | 310 | 258 | 206 | 172 | 155 | 124 | 103 | 86 | 77.5 | 62 | 51.6 | 443 | 38.75 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.77 |
|
转矩 Torque N.M |
0.22 | 0.27 | 0.37 | 0.45 | 0.56 | 0.67 | 0.74 | 0.93 | 1.11 | 1.2 | 1.34 | 1.67 | 2.01 | 2.41 | 2.67 | 3.34 | 3.11 | 4.11 | 5 | 5 | 5 | 5 | 5 | 5 | |
